RHH RHW USE-2 Aluminum Underground Service Entrance Cable
https://www.zetastonecables.co....m/products/rhh-rhw-u

rhw cable definition
The rhh rhw 2 cable features:

Underground Service Entrance Cable. 600 Volt. Aluminum Alloy (AA-8176) Conductor.XLPE Insulation. High Heat, Moisture, and Sunlight Resistant. 6 - 4/0 AWG.

RHH RHW USE-2 Aluminum Underground Service Entrance Cable Applications
The RHH RHW rhh rhw 2 wire are used with conduit as specified in the National Electrical Code. When used as Type rhh rhw use 2, conductors are suitable for use as underground service entrance conductors for direct burial at conductor temperatures not to exceed 90°C. When used as RHW-2 or USE-2, conductor temperatures shall not exceed 90°C in wet or dry locations. Voltage rating for rhh 2 or RHH or USE-2 conductors is 600 volts. If you are looking for a type of UL certified cable, this product is designed to meet the highest standards for electrical safety and performance.
RHH RHW USE-2 Aluminum Underground Service Entrance Cable Specifications
ASTM B800 and either B801 or B836 (SIW)
UL 44 for RHH or RHW-2
UL 854 for USE-2
Federal Specification A-A-59544
National Electrical Code, NFPA 70

Zetastone Cable provides top-tier use rhh rhw wire and various types of RHW-2 cables, and we guarantee that all our cables meet rigorous industry standards for durability and performance.

There are many custom cable manufacturers, but we are one of the best choices for you.

We can also provide kinds of cable wire for sale, if you are interested, please contact us.

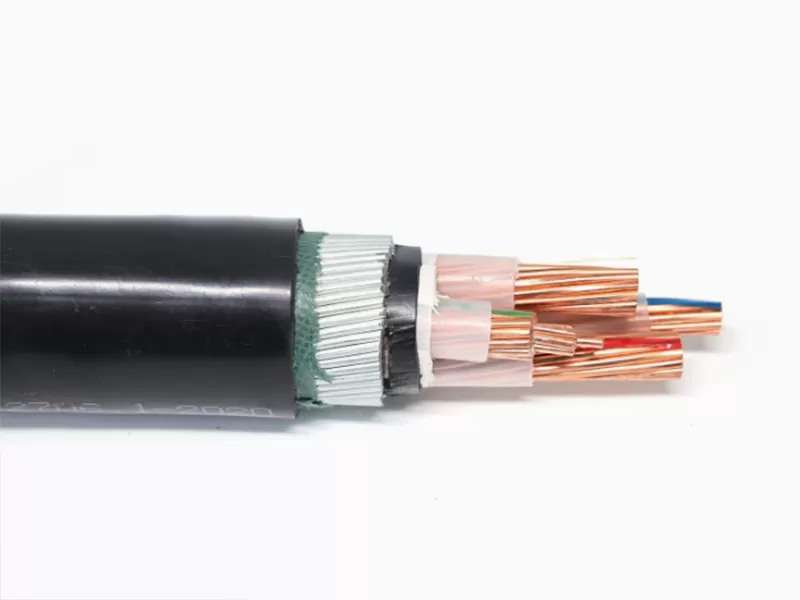

PVC Aroured Cable PVC Insulated Sheathe Electric Cable
https://www.zetastonecables.co....m/products/pvc-insul


pvc insulated and sheathed cable Scope
(1)Maximum Conductor Temperature: under normal (90º C), emergency (130ºC) or short circuit no more than 5 s (250ºC) conditions.
(2)Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
(3)Min. Bending Radius: 12 x cable O.D

pvc insulated sheathed cable Construction
(1)Conductor :flexible stranded copper conductor, Cl.2 as per IEC 60228
(2)Insulation : PVC
(3)Inner covering : PVC
(4)Armoring : steel wire
(5)Sheath : PVC type ST2 to IEC 60502, black
(6)standard: IEC 60502, IEC 60228, IEC 60332

PVC insulated and sheathed cable Application
Construction, Overhead, Underground, Industrial, Power Station, Telecommunication

pvc sheathed cable FAQ
Q1.ABOUT US?
A1: Zhejiang Yuantong Wire & Cable Manufacturing Co., Ltd. is one of the enterprises of the high-end manufacturing sector of the Fortune Global 500 - Wuchan Zhongda Group(WZ Group) (stock code SH600704). It was Founded in 2000 with a registered capital of RMB 800 million, we are a leading technology company in China that produces the most complete varieties of Bare conductor & Power Cable & Fire-proof cable & UL & CSA List cables.

Q2：how about your quality?
A2: We have built a provincial "factory of the future" and have the largest single and most efficient special cable intelligent production workshop in Asia. There are advanced production equipment and skilled workers, as well as mature testing equipment.

Q3:how about your price?
A3: Due to our scale and high degree of automation, we can reduce labor costs and procurement costs, so our prices are very competitive in the cable industry

Q4:how about your delivery time?
A4: We have spare core, so our production time can be compressed to 7 days.If your order is large,please consult our sales staff for specific production time

Q5: can your offer sample service?
A5:we can provide free samples,but the shipping cost need be charged by you.

There are many cable suppliers, but we are one of the best choices for you.

We can also provide kinds of bare conductor for sale, if you are interested, please contact us.

VV32 PVC Insulated LV Armored Power Cable
https://www.zetastonecables.co....m/products/pvc-insul

PVC Insulated Low Voltage aluminum interlocked armor cable. Fixed laying in metallurgy, electric power, construction and other industries indoors, cable trenches, pipelines, direct burial and other places that do not need to withstand mechanical external force.

PVC Insulated Low Voltage aluminium armored cable Scope
(1)Rated voltage:The rated voltage is 0.6/1kV, and the maximum voltage of the AC system should not exceed 1.2kV.
(2)Operating temperature:The maximum allowable long-term operating temperature of the cable conductor is 90°C; In the case of short circuit, the maximum temperature of the cable conductor shall not exceed 250 ° C and the duration shall not exceed 5s.
(3)ambient temperature:The minimum ambient temperature for cable operation is -15ºC.
(4)Laying temperature:When installing and laying, the temperature should not be lower than 0ºC.
(5)bending radius:The bending radius of single-core cables should be no less than 20 times the outer diameter of the cable, and the bending radius of multi-core cables should be no less than 15 times the outer diameter of the cable.

PVC Insulated Low Voltage aluminum armored cable Construction
(1) conductor:stranded BC copper
(2) Insulation:PVC
(3) Inner sheath:PVC
(4) Armor:aluminium wire
(5) Standard:

PVC Insulated Low Voltage aluminum armor tape Application
Fixed laying in metallurgy, electric power, construction and other industries indoors, cable trenches, pipelines, direct burial and other places that do not need to withstand mechanical external force.

PVC Insulated Low Voltage Aluminium Wire Armored Power Cable FAQ
Q1.ABOUT US?
A1: Zhejiang Yuantong Wire & Cable Manufacturing Co., Ltd. is one of the enterprises of the high-end manufacturing sector of the Fortune Global 500 - Wuchan Zhongda Group(WZ Group) (stock code SH600704). It was Founded in 2000 with a registered capital of RMB 800 million, we are a leading technology company in China that produces the most complete varieties of Bare conductor & Power Cable & Fire-proof cable & UL & CSA List cables.

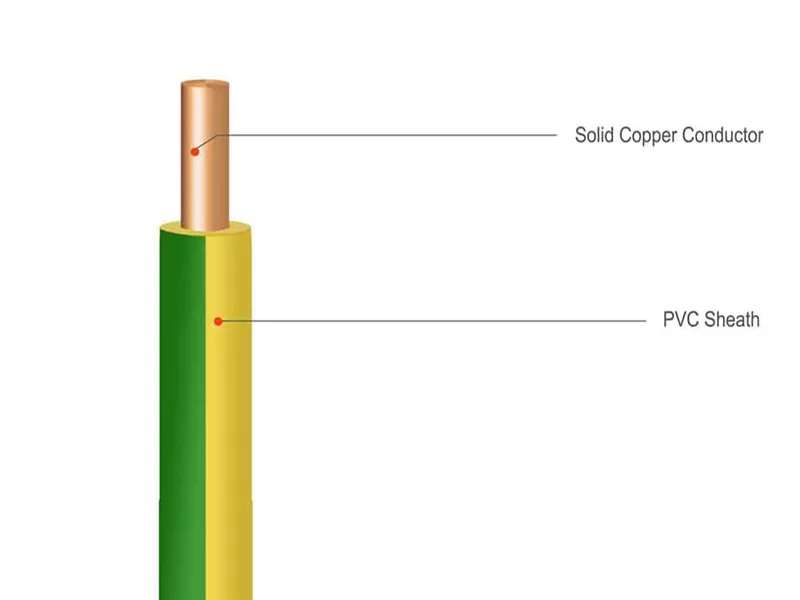

PVC Electric Power Earth Wire Cable
https://www.zetastonecables.co....m/products/pvc-elect

pvc earth cable is suitable for fixed installation of power plants with rated AC voltage of 450/750v and below.

PVC Electric Power Earth Wire Cable Scope
The product is suitable for fixed installation of power plants with rated AC voltage of 450/750v and below.The yellow and green two-color wires are specially used for grounding wires. The working temperature of the ordinary PVC wire is not more than 70℃.The laying temperature of the cable shall not be lower than 0℃.

Conductor:solid copper conductor
Insulation:PVC,PE
Standard:IEC 60227, BS 6004

PVC Electric Power Earth h07v u cable Applications
The ground wires are widely used in power equipment, machines, household appliances and other electrical equipment and installation projects.It can also be widely used in machines, household appliances and other electrical equipment and installation projects.

PVC Electric Power Earth Wire Cable FAQ
1：how about your quality?
We have built a provincial "factory of the future" and have the largest single and most efficient special cable intelligent production workshop in Asia. There are advanced production equipment and skilled workers, as well as mature testing equipment.

2:how about your price?
Due to our scale and high degree of automation, we can reduce labor costs and procurement costs, so our prices are very competitive in the cable industry

3:how about your delivery time?
We have spare core, so our production time can be compressed to 7 days.If your order is large,please consult our sales staff for specific production time.

As a trustworthy and reliable special cable company, we provide you with teck 90 cable.

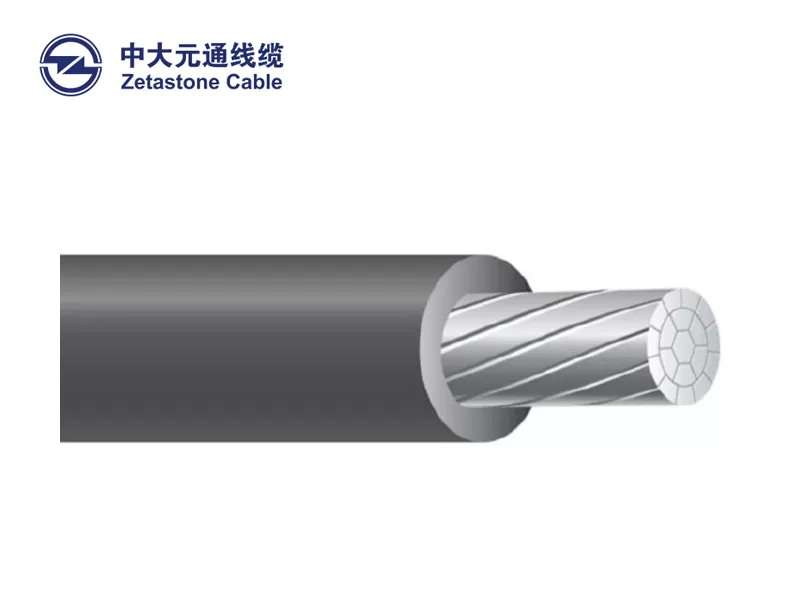

NMD90 Aluminum Non-Metallic Sheathed Cable
https://www.zetastonecables.co....m/products/nmd90-alu

The NMD90 Aluminum Non-Metallic Sheathed Cable from Zetastone Cable (also known as nmd90 electrical wire) features aluminum conductors rated at 300 volts, with a temperature range from -25°C to 90°C. Unlike metallic sheathed wire, this non-metallic design offers flexibility for indoor installations without added armor.

NMD90 Aluminum Non-Metallic Sheathed Cable Applications
NMD90 cables, recognized as one of the types of non metallic sheathed cable, may be used for both exposed work in dry locations or concealed work in dry or damp locations. The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is minus 25°C for three-conductor cables (with suitable handling procedures). Material should be properly stored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300 volts.

nmd90 wire specs
ASTM
Our NMD90 wire meets multiple Canadian Standards Association (CSA) certifications to ensure safety and reliability in electrical installations.

CSAC22.2 No. 48, Nonmetallic sheathed cable

CSAC22.2 No. 38, Thermoset-insulated wires and cables

CSAC22.2 No. 2556, FT1 Vertical Propagation Flame Test

Print Sample
001M 4AWG 3C+6AWG 1C AA8000AL XLPE NMD90   FT1 300V   CSA271587  CSA C22.2 No48 03-2024

NMD90 Aluminum Non-Metallic Sheathed Cable Data
For more information about nmd90 cable meaning and non metallic sheathed cable use, please feel free to contact us!
