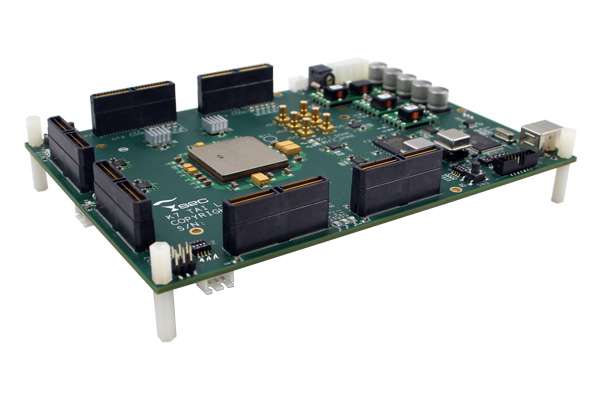

Prodigy Logic Module
https://www.s2cinc.com/product....s/fpga-prototyping/l

S2C's FPGA Prototyping system has been in the market since 2004 and has since been widely adopted by many leading SoC/ASIC design companies. The Prodigy Logic Module series are specially designed with low profile and affordability in mind. The Prodigy Logic Modules are based on Xilinx's VU ku115 fpga devices.

S2C Prodigy Logic Module Solution
Largest Capacity in Single FPGA
5,541 Logic Cells
2,880 DSP Slices
88.6Mb Internal memories

High System Performance
Up to two speed-grade improvement with high utilization comparing with V7-2000T
On-board support high speed DDR4 & PCIe Gen 3

Accelerated Design Productivity
Co-optimized with Vivado Design Suite for rapid design closure

For more information about soc validation and xilinx ku115, please feel free to contact us!

We can also provide kinds of vu13p board for sale, if you are interested, please contact us.

Prodigy ProtoBridge
https://www.s2cinc.com/product....s/fpga-prototyping/p

An FPGA-Assisted Verification Tool

FPGA-based prototypes closely resemble final silicon chips in speed and accuracy, providing significant value in full-chip validation and early software development. Realizing these benefits has historically been met with the need to build additional DUT fpga prototyping hardware with significant resources and specialized expertise having to be employed to obtain the necessary FPGA connectivity.

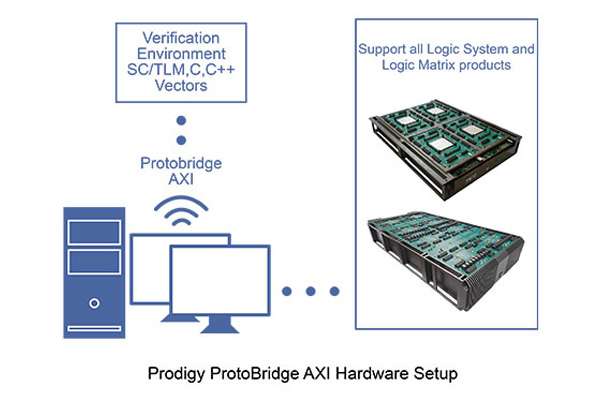

The unique Prodigy ProtoBridge AXI FPGA-Assisted Verification Tool uses the widely adopted AXI-4 bus protocol to link transaction coordinator software running on host PC to the FPGA-based prototyping environment. The result of Host DUT connectivity is a high-throughput channel that allows for the transfer of large amounts of transaction-level data between the FPGA(s) and a host computer.

Features of Prodigy Proto Bridge

AXI-4 transaction-level interconnection module and Master/Slave interfaces for FPGA integration
A set of C-API function calls to perform AXI bus transactions in the host computer
PCIe3 driver for Linux or Windows operating systems to control Logic Module operations
C-API reference operations with sample access to FPGA internal memory
System integration guide to connect user RTL code with the ProtoBridge AXI-4 bus module

Benefits & Specifications of Prodigy ProtoBridge
Technology
Early IP Verification without the complete SoC design

IP blocks connected to the AXI bus can be verified without processor cores or peripheral blocks

Early algorithm/architectural exploration can be performed on the FPGA while taking advantage of the FPGA environment's speed performance

Shorten Design Verification Time with a high-throughput channel

Transaction-level verification is utilized to ensure system-level result accuracy

C-code is used as a stimulus to reduce the time and effort in creating RTL test benches

Achieve High Product Reliability with improved test coverage

Create corner test cases in software and run exercises on an FPGA-based prototype

Run high-performance regression tests on an FPGA-based prototype with vectors stored in host computers

Business
Eliminate Resource & Expertise Constraints by removing the need for the creation of additional specialized hardware and software

Prodigy ProtoBridge Reuse Across Multiple Projects as the flexibility of Prodigy ProtoBridge makes it ideal for any design

AXI-4 Bus Protocol Between Host PC and FPGA

Instantiation of AXI-4, AXI4-Lite, AXI-3 and AHB bus connections on FPGA ports

Configurable data width from 32-bit to 1024-bit

Support for an independent clock for each Master/Slave instance

Exercise of Large Amounts of Verification Data at High Speed
Transmission through 8-lane PCIe Gen3 between Host PC and FPGA
Massive data transfer from Host PC to FPGA up to 4000 MB/s
Support for direct and DMA access modes

Rich Coverage of C Function Calls Between Host PC and FPGA

System initialization function calls to manage the tool environment

Interrupt control function calls to identify the source of an interrupt signal for C-API's follow-up actions

Data read/write function calls to communicate with and operate the FPGA circuit

DMA transfer function calls to perform DMA operations for large amounts of data

Get World-Class Support to help design teams with any issues that arise-something not available with in-house solutions leaving design teams to fend for themselves

For more information about asic emulation and ip validation, please feel free to contact us!

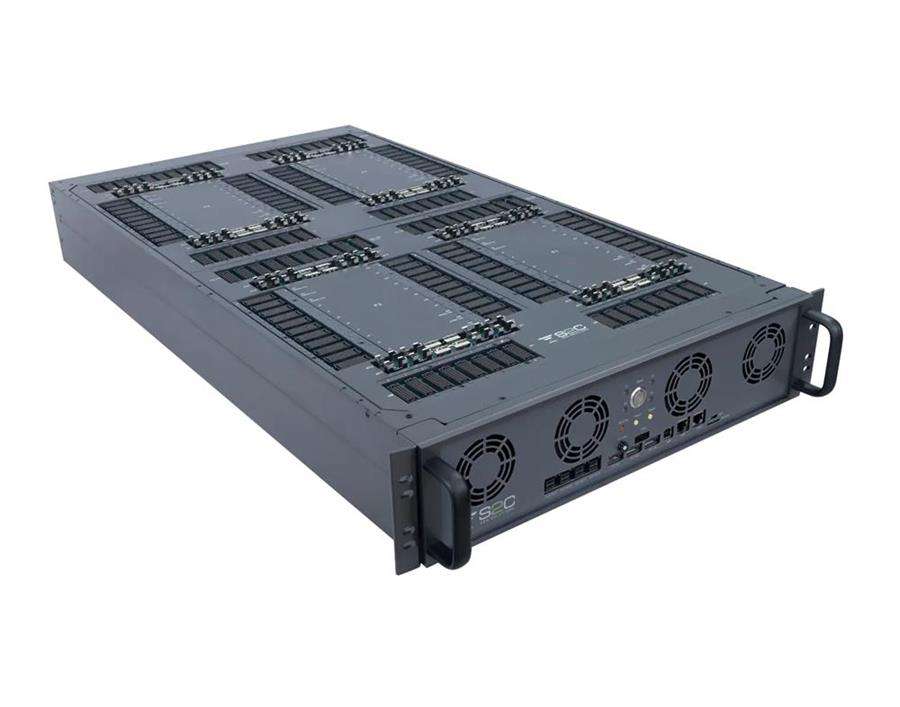

Prodigy Logic System
https://www.s2cinc.com/product....s/fpga-prototyping/p

s2c logic system has been on the market since 2004 and has since been widely adopted by many leading SoC/ASIC design companies. The S2C prodigy logic system series is a compact, sleek, and all-in-one design for maximum flexibility, durability, and portability. The Prodigy Logic Systems are based on Xilinx and Intel FPGA devices. Advantages of using S2C's Prodigy Logic Systems include:

Modular all-in-one design offering the highest flexibility and performance

Abundant prototyping tools support (partition and debugging) to speed up the prototype bring-up time

Easy to reconfigure and to stack for reuse over multiple projects

Comprehensive portfolio of Prototype Ready IP fpga daughter cards and interface accessories

AMD-based Prototyping Solutions
Prodigy S8 Series (Versal Premium)
The 8th generation SoC/ASIC prototyping solution from S2C, the Prodigy S8 series Logic System, is equipped with AMD's（Xilinx）Versal Premium FPGA. It delivers industry-leading performance, capacities, sc...

Prodigy S7 Series (Virtex UltraScale+)
The 7th generation SoC/ASIC prototyping solution from S2C, the Prodigy S7 series Logic System, is equipped with AMD's（Xilinx）Virtex UltraScale+™ FPGA. The Prodigy Logic System are supported by S2C'...

Virtex UltraScale Series
S2C's Virtex UltraScale (VU) Prodigy Logic Systems are built on the Virtex UltraScale XCVU440 FPGA from Xilinx.

Stratix 10 Series
S2C's Stratix 10 Prodigy Logic Systems offers easy and cost-effective path to higher density FPGA. The Stratix10 Prodigy Logic Systems are available in the following FPGAs: Stratix 10GX2800 and GX10M.

Learn more about Prodigy Logic System
S2C Accelerates Billion Gate FPGA Prototyping with Xilinx Virtex UltraScale+ VU19P Based Systems
With a high logic gate count to total resources ratio, Xilinx's Virtex UltraScale+ VU19P is the highest density FPGA offered by Xilinx and is optimal for ASIC and SoC prototyping. Manufactured on TSMC's 16nm process technology, the VU19P is 1.6X larger and 30% faster than its highly popular 20nm predecessor the Virtex UltraScale 440. Leveraging four VU19P FPGAs.

For more information about asic prototyping and fpga verification, please feel free to contact us!

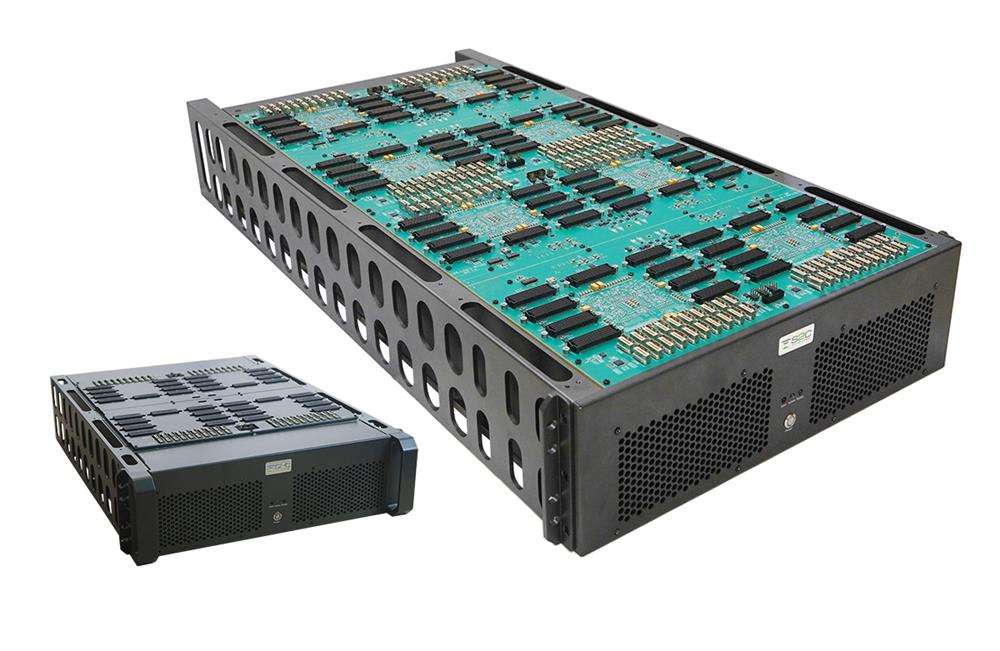

Prodigy Logic Matrix
https://www.s2cinc.com/product....s/fpga-prototyping/p

Prodigy™ s2c logic matrix is a high-density FPGA prototyping platform architected from the ground up to meet today's needs for both hyperscale design verification and operation performance. Optimized for space and connectivity, S2C prodigy logic matrix is designed for multi-system expansion to support billions of ASIC gate capacity. This platform is ideal for addressing the ever-increasing complexity and performance requirements in large-scale SoC hyperscale design for applications such as 5G, data center, AI/ML, and autonomous driving.

Advantages of Using S2C's Prodigy Logic Matrix

Industry-leading density and capacity-up to 3.136 billion ASIC gates in single standard server rack

Hierarchical connectivity to support ­flexible topology and hyperscale design validation at prototyping performance

Highly modular design to simplify deployment, maintenance, and expansion in standard server racks

Multi-usages: early software development, full system prototyping, high performance regression

Learn more about Prodigy Logic Matrix
New Benchmark in High-performance & High-density Prototyping
Logic Matrix address high-performance FPGA prototyping by providing a flexible connectivity architecture with 3 levels of hierarchy: ShortBridge with interconnection modules between neighboring FPGAs; SysLink to connect FPGAs over high bandwidth cables, and TransLink for longer distance links between FPGA SerDes over MCIO cables.

For more information abouthyperscale design verification and s2c service, please feel free to contact us!
